◎1.Using compressed air as gas source and high temperature plasma as heating source
◎2.Suitable for cutting stainless steel,carbon steel.aluminium,copper and composite plate.
◎3.Simple circuit and easy to maintain.

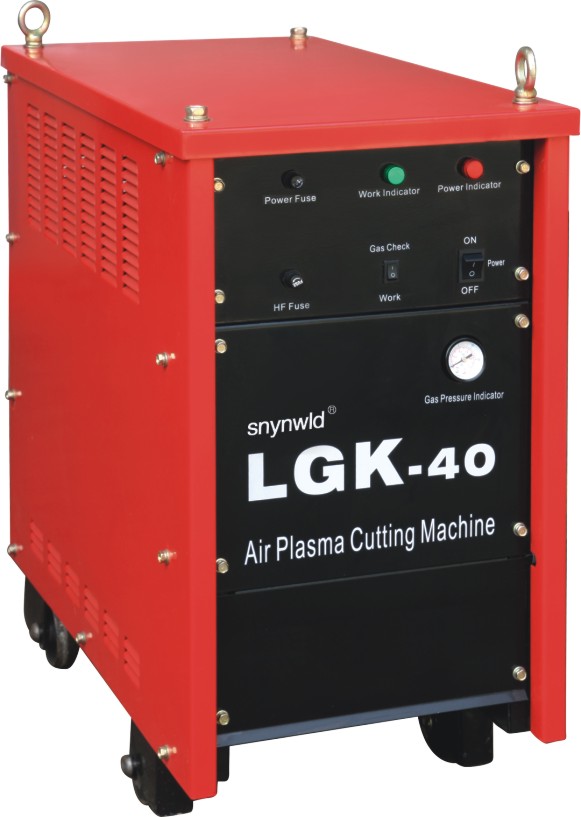

| Model | LGK-40 | LGK-63 | LGK-63 |
| Power voltage/Frequency(V) | 3Phase 380V/50Hz | 3Phase 380V/50Hz | 3Phase 380V/50Hz |
| Rated Input Power(KVA) | 9.6 | 15 | 28 |
| Rater Input Current(A) | 14 | 22 | 42 |
| Rater Duty Cycle(%) | 60 | 60 | 60 |
| Output Current(A) | 40 | 63 | 100 |
| Output No-load Voltage(V) | 240 | 240 | 280 |
| Operating Voltage(V) | 96 | 105 | 120 |
| Cutting Thickness(mm) | ≤12 | ≤20 | ≤30 |
| Air Pressure(mpa) | 0.4～0.6 | 0.4～0.6 | 0.5～0.7 |
| GasFlow(Lmin) | 100 | 100 | 130 |
| Net Weight(Kg) | 87 | 97 | 140 |
| Gross Weight(Kg) | 100 | 110 | 155 |
| Insulation Class | F | F | F |
| Crust Protection Class | IP21S | IP21S | IP21S |
| Dimension(mm) | 382×760×660 | 382×760×660 | 440×760×660 |
